Profile Search

Select the signal containing the profile: From the dropdown menu, select a signal from the details pane, pinned items or recently used sections.

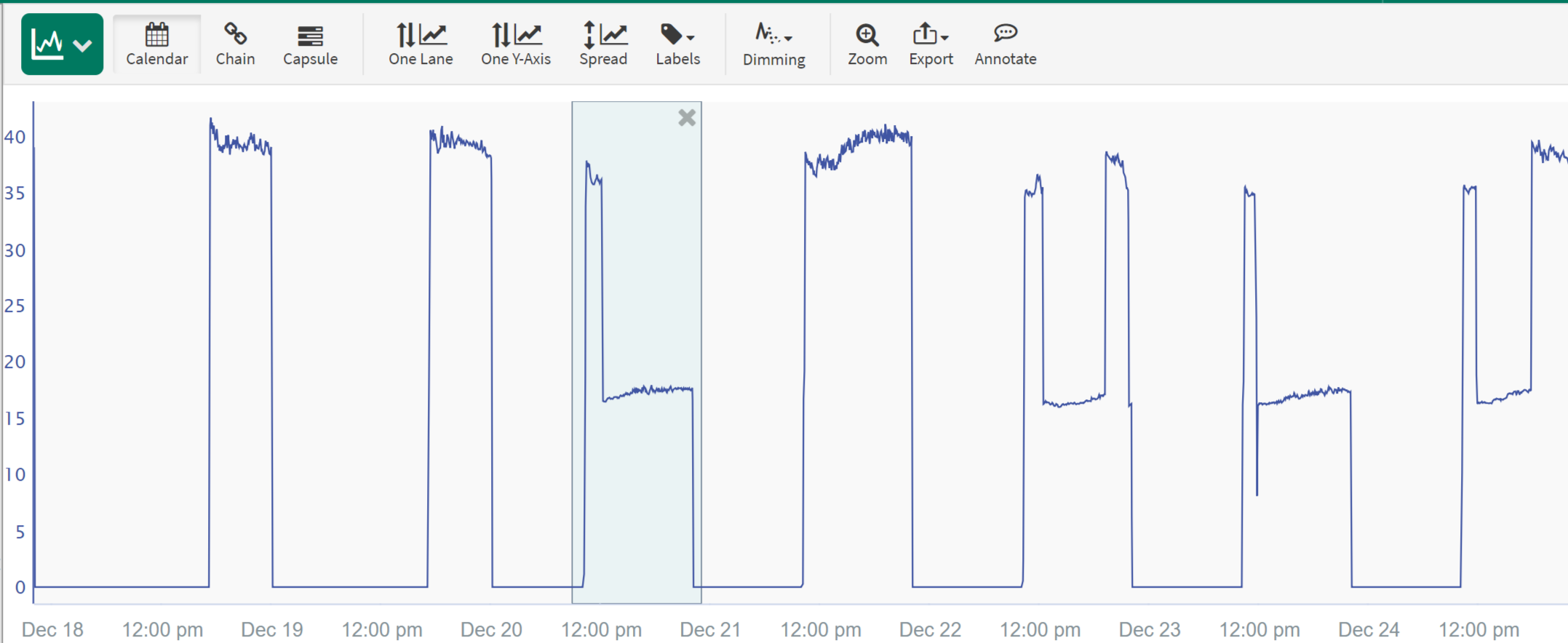

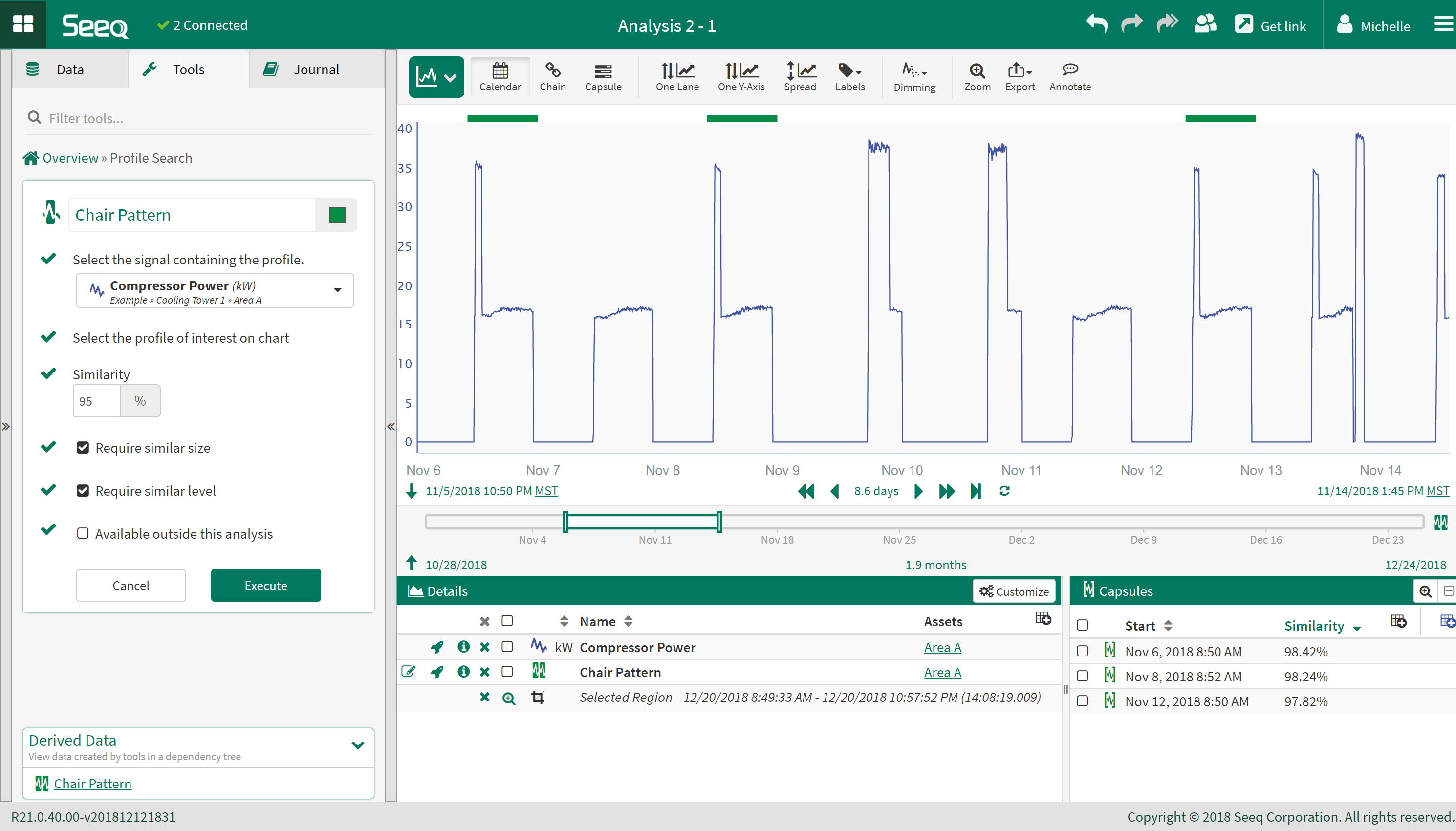

Select the profile of interest on chart:  In the Display Pane, click, hold and drag to select your target profile

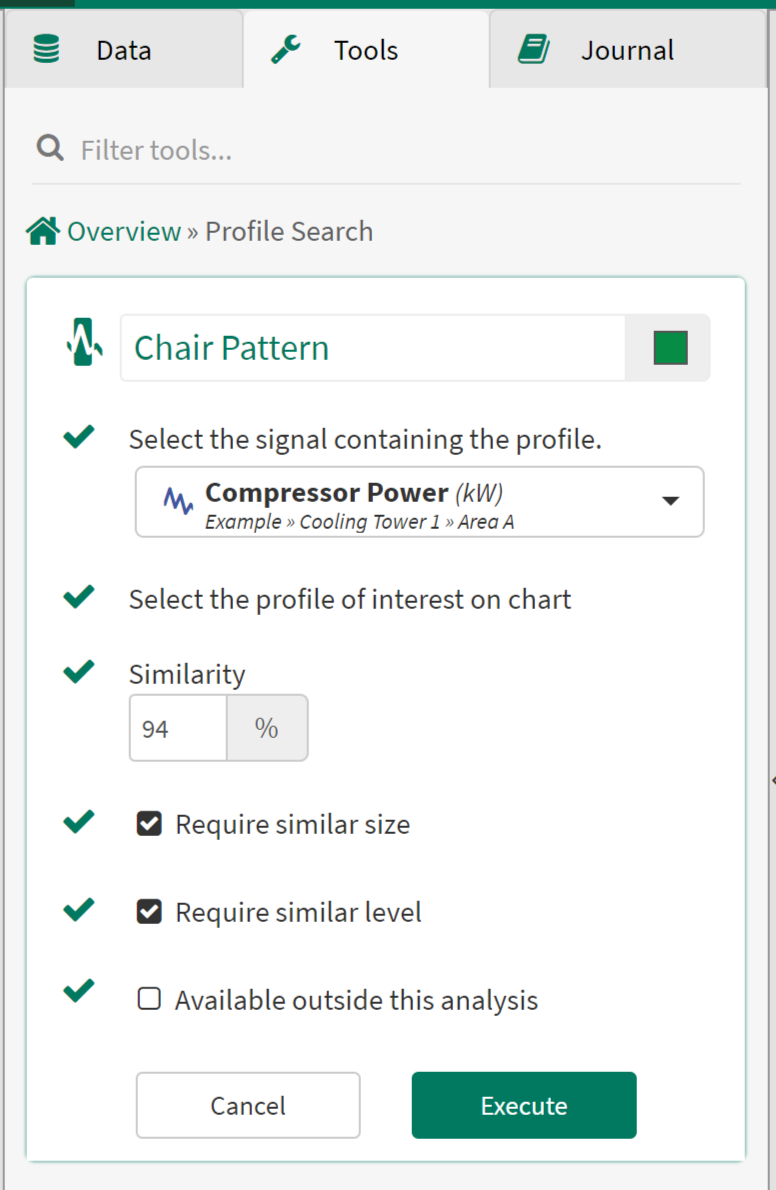

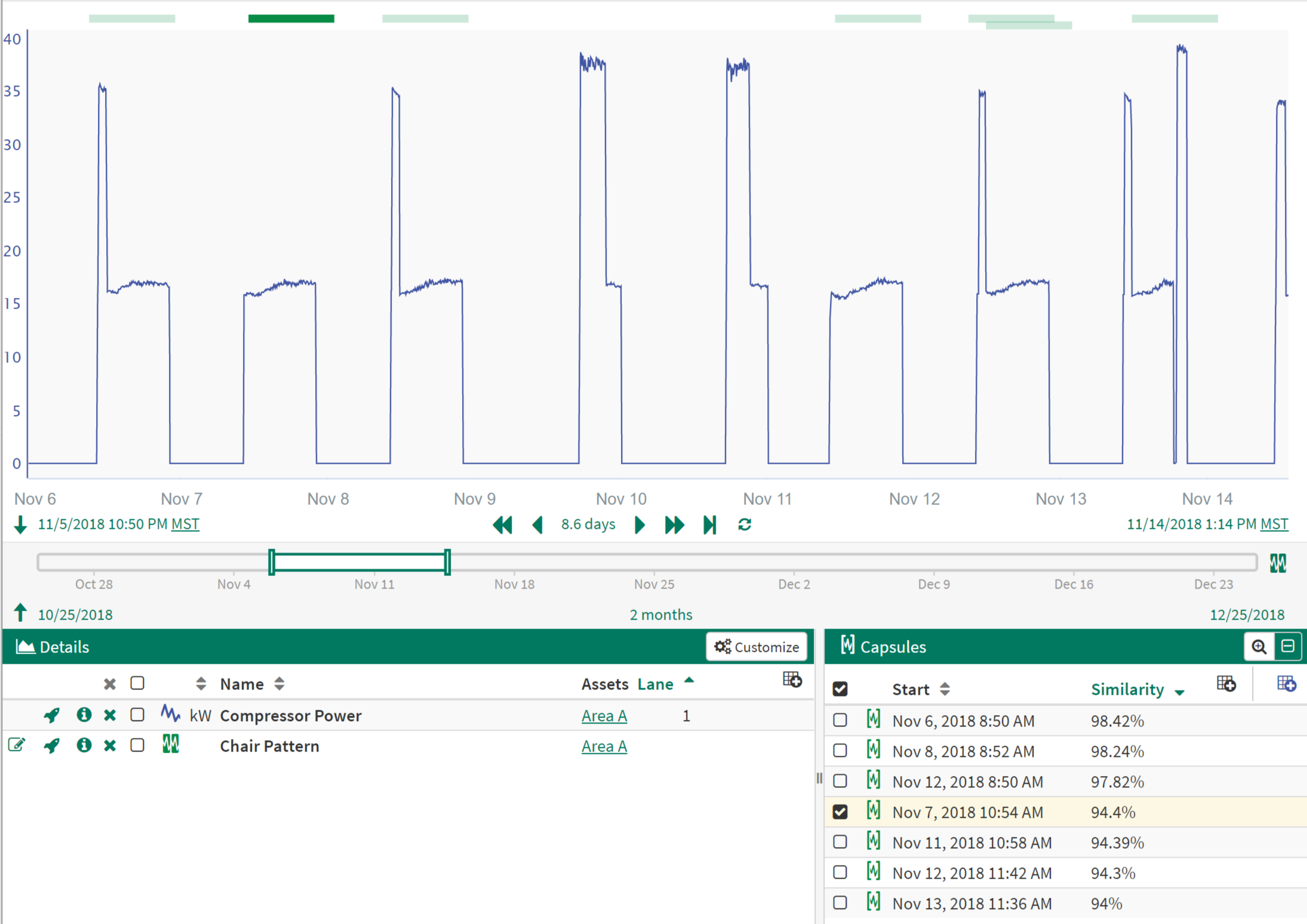

Similarity: Enter the similarity percentage for which to match the profile. A higher percentage is more restrictive and a lower percentage is less restrictive.

Require similar size: This will include only patterns occurring for a similar magnitude on the y-axis, in the Condition. Unchecking this box will allow matches which are the same shape but different size. For example, if this option is not selected, if the target pattern occurs between 0 - 25kW a similar matching pattern occurring between 0- 50kW would also be included in the condition.

Require similar level: This will include only patterns occurring for a similar scale on the, y-axis, in the Condition. Unchecking this box will allow matches which are the same shape but are centered around different levels. For example, if this option is not selected, if the target pattern occurs around 25kW a similar matching pattern occurring centered around 1025kW would also be included in the condition.

Available outside this analysis: Checking this box will allow this signal to be used in other workbench analyses and topics. It will be available for all Seeq users and will display in their search results. Consider using a unique name as the signal will be published to the global name space.
