Synchronizing Security Information from PI

Administrators can configure PI Connector to synchronize security related information from PI into Seeq.

Security related information consists of PI point security strings (data security and point security), PI identities and mappings of PI Identities to Active Directory accounts.

Note that even if both: data security and point security information is sent to Seeq, an AND between the two information pieces is made so that in order to get read access in Seeq for a signal, it must have in PI read+read_data permissions.

PI Security synchronization requires PI AF Client 2014+ (AFSDK 2.6+)

Overview

PI Connector may be configured to synchronize point security and PI Identities with Seeq.

A typical Additional Properties configuration looks like the following. The SecuritySynchronization section contains the security related information.

{
      "PIServerID": "c29fb683-86c9-4a74-b0af-95b6b9f528fb",
      "Username": null,
      "Password": null,
      "Transforms": null,
      "SecuritySynchronization": {
        "Identities": true,
        "PointSecurity": true,
        "IdentityMappingsDatasourceClass": "LDAP",
        "IdentityMappingsDatasourceId": "7f4d9fb7-6b05-47c8-b8dd-7bec439810ad",
        "IdentityMappingsStopRegex": "^(BUILTIN\\\\.*)$",
        "PIWorldMapping": "Auth/Seeq/Everyone"
      }
}

Prerequisites

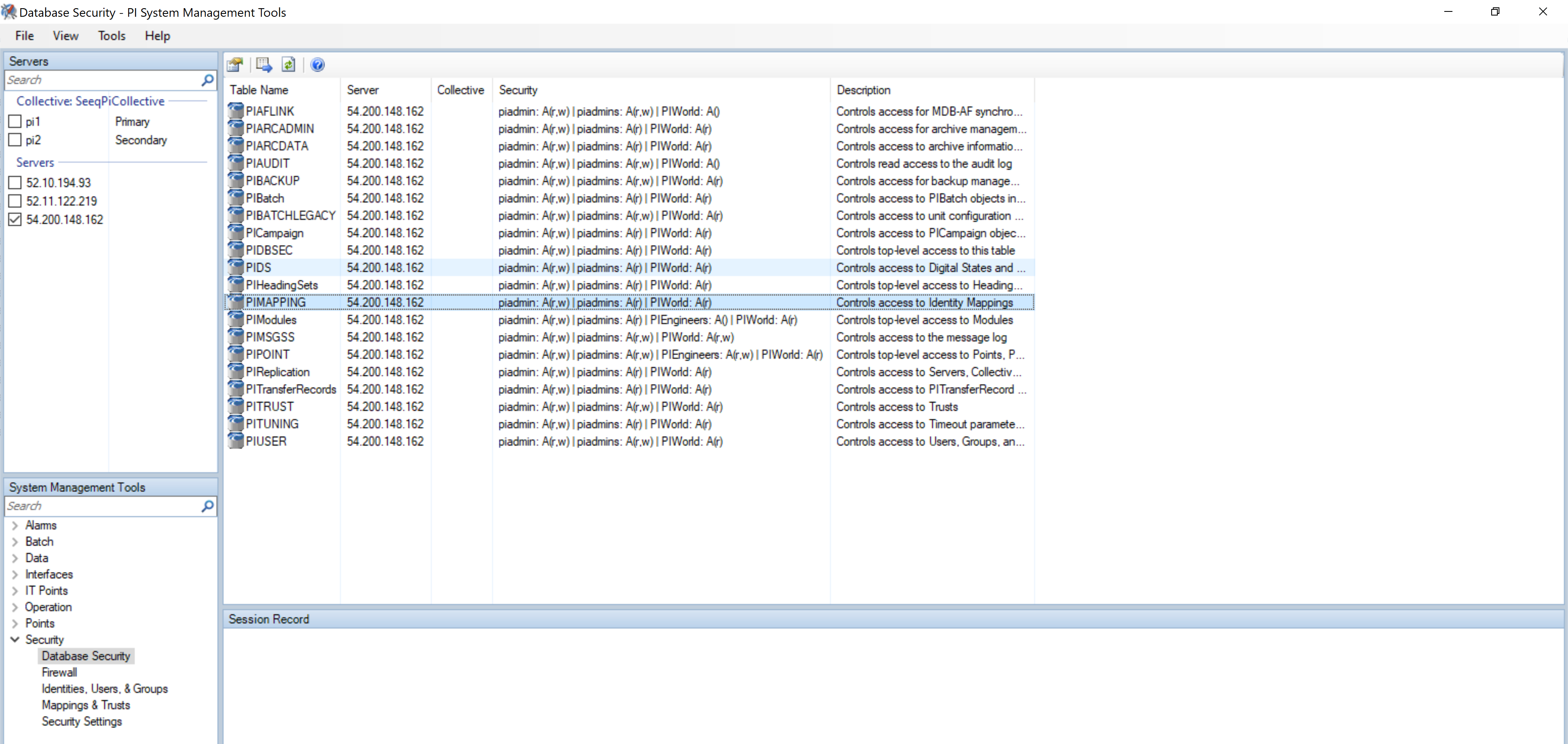

In order for Seeq to recognize the PI Identity mappings, the account running Seeq will need read access to the mappings and identities of the PI Data Archive. To determine whether this is the case or not, go to PI System Management Tools and connect to the PI server in question. Go to the System Management Tools menu and navigate the the pathway Security >> Database Security. In this page there are two tables, PIMAPPING and PIUSER. These tables dictate which identities have access to the mappings and PI identities. If the identity mapped to the Seeq account is not shown in the Security for both of these tables, double clicking the field allows you to add additional identities.

Configuration

The SecuritySynchronization section contains the following fields:

Special considerations

Handling of disabled PI Identities

Disabled PI Identities are sent to Seeq as disabled.

Handling of disabled Identity Mappings

Disabled identity mappings from PI will not be sent to Seeq. Seeq will behave as if the mapping would not exist.

Examples

Example 1

Synchronize PIPOINT security, Identities and mappings and map PIWorld to Everyone group in Seeq:

{
      "PIServerID": "c29fb683-86c9-4a74-b0af-95b6b9f528fb",
      "SecuritySynchronization": {
        "Identities": true,
        "PointSecurity": true,
        "IdentityMappingsDatasourceClass": "LDAP",
        "IdentityMappingsDatasourceId": "REPLACE WITH YOUR ENABLED LDAP DATASOURCE ID",
        "IdentityMappingsStopRegex": "^(BUILTIN\\\\.*)$",
        "PIWorldMapping": "Auth/Seeq/Everyone"
      }
}

Note: Do not use PIWorldMapping if PIWorld is disabled on the PI server. See troubleshooting section for more information on this issue.

Example 2

Synchronize PIPOINT security, Identities and mappings and treat PIWorld identity as any other identity in Seeq:

{
      "PIServerID": "c29fb683-86c9-4a74-b0af-95b6b9f528fb",
      "SecuritySynchronization": {
        "Identities": true,
        "PointSecurity": true,
        "IdentityMappingsDatasourceClass": "LDAP",
        "IdentityMappingsDatasourceId": "REPLACE WITH YOUR ENABLED LDAP DATASOURCE ID",
        "IdentityMappingsStopRegex": "^(BUILTIN\\\\.*)$",
        "PIWorldMapping": null
      }
}

Note: PIWorldMapping was set to null in this case

Example 3

Synchronize only PIPOINT security and map the pi identities to already existing Seeq groups:

Assumptions:

• In PI we have two identities: piadmins and pieng.

• In Seeq we already have two groups: SeeqAdministrators and SeeqEng.

• We don't want PI Connector to create any identities in Seeq. Instead just map to already existing identities (piadmins → SeeqAdministrators, pieng → SeeqEng) and use those already existing identities for setting the permissions of signals.

The configuration will look like:

{
      "PIServerID": "c29fb683-86c9-4a74-b0af-95b6b9f528fb",
      "Transforms": [
        {
          "Inputs": [
            {
              "Property": "Security String",
              "Value": "(?<beforeId>.*)piadmins:(?<afterId>.*)"
            }
          ],
          "Outputs": [
            {
              "Property": "Security String",
              "Value": "${beforeId}Auth/Seeq/SeeqAdministrators:${afterId}",
              "UnitOfMeasure": null
            }
          ],
          "Enabled": true,
          "Log": false
        },
        {
          "Inputs": [
            {
              "Property": "Security String",
              "Value": "(?<beforeId>.*)pieng:(?<afterId>.*)"
            }
          ],
          "Outputs": [
            {
              "Property": "Security String",
              "Value": "${beforeId}Auth/Seeq/SeeqEng:${afterId}",
              "UnitOfMeasure": null
            }
          ],
          "Enabled": true,
          "Log": false
        }
      ],
      "SecuritySynchronization": {
        "Identities": false,
        "PointSecurity": true,
        "IdentityMappingsDatasourceClass": "LDAP",
        "IdentityMappingsDatasourceId" : null,
        "IdentityMappingsStopRegex": "^(BUILTIN\\\\.*)$",
        "PIWorldMapping": null
      }
}

We can see in this configuration that signal transforms are set to change the "Security String" from PI Identities to already existing Seeq groups and Security Synchronization is configured to not send identities to Seeq.

Note: Because we rely on existing Seeq identities, in "SecuritySynchronization" we've set Identities = false, IdentityMappingsDatasourceId = null and PIWorldMapping = null.

Troubleshooting PI Security in Seeq

• All users are seeing all the tags even if PIWorld is disabled. This can happen if PIWorldMapping is enabled (is set to Auth/Seeq/Everyone) and PIWorld is disabled in PI. Even if PIWorld is disabled the security string still contains PIWorld. If PIWorld is mapped to Everyone in Seeq then Everyone will be able to see all the tags.

Rollback security

If you want to roll back security you will need to set PointSecurity to false and most likely won't need to synchronize Identities so you can set it to false as well. Once that’s done you will need to revert the security settings for all signals with this two-step process of setting datasource permissions using transforms.

Step one: Set the security string to empty to get rid of all groups added by PI

[
    {
        "Inputs": [
            {
                "Property": "Security String",
                "Value": ".*"
            }
        ],
        "Outputs": [
            {
                "Property": "Security String",
                "Value": "",
                "UnitOfMeasure": null
            }
        ],
        "Enabled": true,
        "Log": false
    }
]

Once this is saved the datasource will index, let it finish and then proceed to the next step.

Step two: Set the security string to inherit permissions from the datasource

[
    {
        "Inputs": [
            {
                "Property": "Security String",
                "Value": ".*"
            }
        ],
        "Outputs": [
            {
                "Property": "Security String",
                "Value": "inherit",
                "UnitOfMeasure": null
            }
        ],
        "Enabled": true,
        "Log": false
    }
]

Save it and let it index. Once the index is done you can remove the transform and the security settings will persist.
