ibaHD-Server

Overview

The IbaHD Connector allows Seeq to connect to the IbaHD Server.

Signals and Conditions

The IbaHD Server has a collection of HD Stores, each having a hierarchy of Channel Groups; each Channel Group may have a collection of Channels (of analog, digital and text data) and of Event Definitions. The IbaHD Connector provides each Channel as a Signal and each Event Definition as a Condition to Seeq.

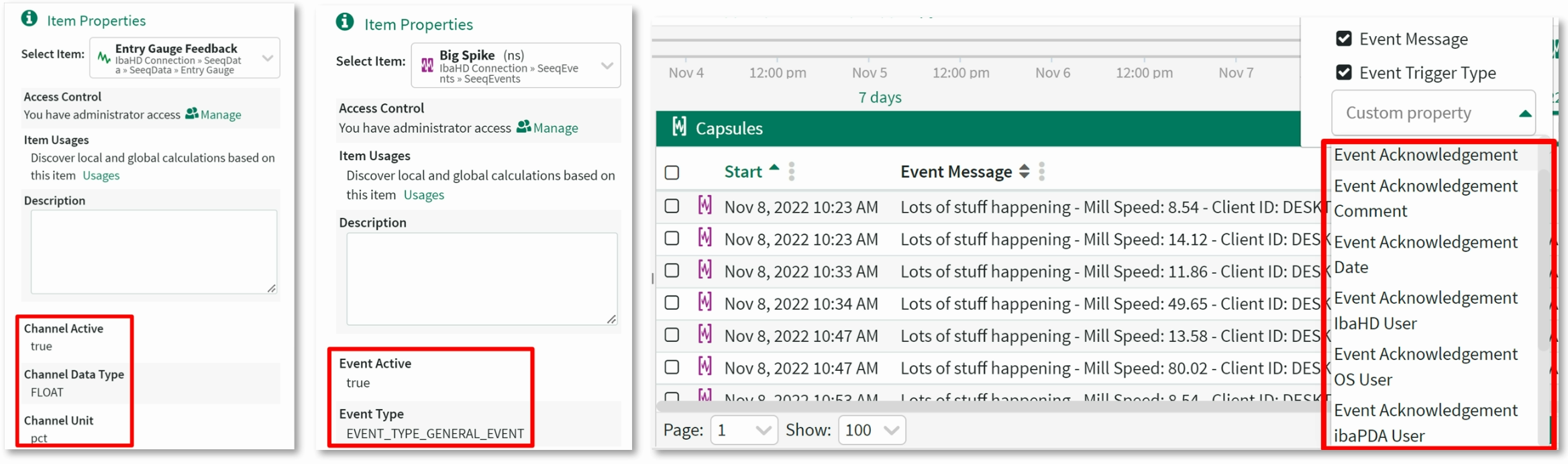

Channel and Event properties are displayed as Signal, Condition and Capsule properties

Downsampled Signals

IbaHD’s Channels of analog data can have a very high resolution, of millions of samples per hour. Since this can make trending large intervals slow, the connector uses IbaHD’s aggregated data functionality to optionally provide an additional downsampled version of each Signal.

These Downsampled Signals have the following special characteristics:

When trending, a fixed number of representative Samples is retrieved, no matter how large the interval. These Samples are calculated from the raw data by IbaHD itself, using its AGGR_ALGO_TYPE_MIN_MAX_AVG_DOWNSAMPLING algorithm.
Since the representative Samples are approximations, Downsampled Signals are always uncertain (i.e., they as displayed as dotted lines in Seeq).
The creation of Downsampled Signals, the maximum number of Samples retrieved and the downsampling method are configurable (see below).

These characteristics make Downsampled Signals a lighter weight alternative to raw Signals when high resolution and absolute precision are not required, for example when trending large intervals.

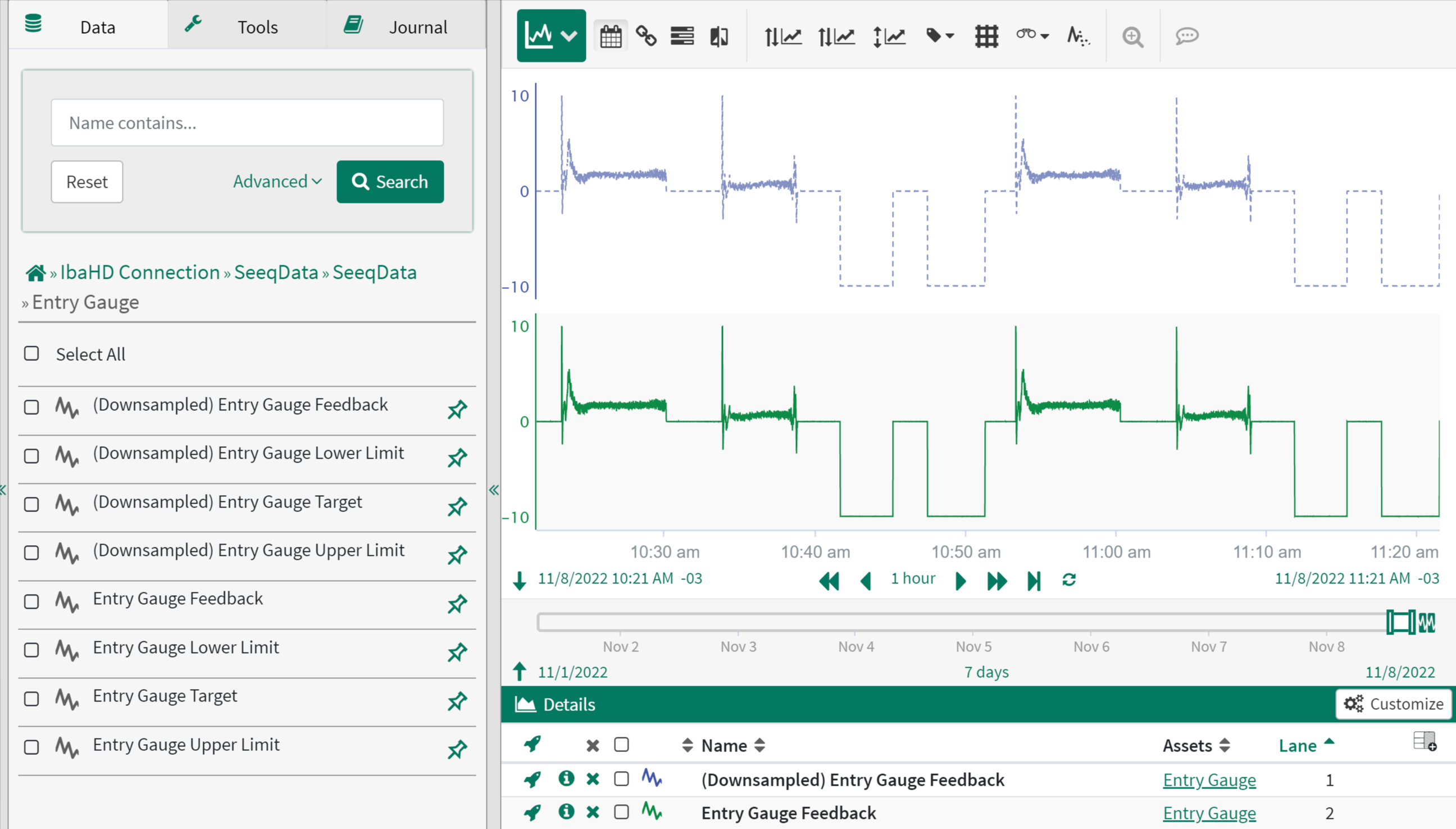

A raw Signal and its downsampled version

Channel Units

Since IbaHD Channels have user-defined units, the connector is unable to automatically map them to Seeq Signal units. As a result, by default Signals are left unitless but a Signal property named Channel Unit is provided with the user-defined IbaHD Channel unit.

If desired, this Signal property can be used in Property Transforms to map Channel units to Seeq Signals' Value Unit Of Measure. The following is an example, which sets the Value Unit Of Measure with value meter in Signals having Channel Unit with value metro. After this transform, the Signal unit m will be displayed in Seeq’s UI.

CODE

{
  "Version" : "com.seeq.link.connectors.ibahd.config.IbaHdConnectorConfigV1",
  "Connections" : [ {
    "Name" : "My IbaHD Connection"
    //... (Other connection fields omitted for brevity)

    "Transforms" : [ {
      "Inputs" : [ {
        "Property" : "Type",
        "Value" : "Signal"
      }, {
        "Property" : "Channel Unit",
        "Value" : "metro"
      } ],
      "Outputs" : [ {
        "Property" : "Value Unit Of Measure",
        "Value" : "meter",
        "UnitOfMeasure" : null
      } ],
      "Enabled" : true,
      "Log" : false
    } ],
  } ]
}

Prerequisites

You will need some information to configure a connection to your ibaHD-Server.

TLS Certificate

You will need the .pem file containing the ibaHD-Server’s TLS certificate. This certificate is generated in the IbaHD Server itself and must be valid for the configured hostname (firewalls must be accounted for).

Connection Information

You will need to gather the IbaHD Server’s host address and Port.

Configuration

This is an example configuration template that is displayed in the Additional Configuration box that appears when you click Configure for an existing datasource (or if a new datasource is being created, in the Create new datasource connection modal that appears after clicking Add Datasource) on the Datasources administration page.

CODE

{
    "Server" :
    {
      "Host" : "ibahd.mycompany.com",
      "Port" : 9005,
      "TlsCertificatePemFile" : "C:\\path\\to\\ibahd_certificate.pem",
      "ApiKey" : "35a8f1f98170b5b93b25b7eaa8268e74b10b3142199403fab59ff0098f954f87"
    },
    "IndexDisabledHdStores" : false,
    "IndexDiagnosticHdStores" : false,
    "MaxEventDurationInDays" : 1,
    "MaxRawChannelSampleCountPerMessage" : null,
    "DownsampledSignals" : {
      "CreateDownsampledSignals" : true,
      "SignalNamePrefix" : "(Downsampled) ",
      "SampleCount" : 100000,
      "DownsamplingMethod" : "AVERAGE"
    }
}

ibaHD-Server Additional Configuration

Property Name	Default Value	Data Type	Description
`Server`	empty	ServerDefinition	The connection information for the server
`IndexDisabledHdStores`	false	Boolean	Whether disabled HD Stores should be indexed.
`IndexDiagnosticHdStores`	false	Boolean	Whether diagnostic HD Stores should be indexed.
`MaxEventDurationInDays`	`1`	Integer	The maximum expected duration of IbaHD Events, in days. Events longer than this won't be displayed in Seeq.
`MaxRawChannelSampleCountPerMessage`	`null`	String	This is an optimization option, specifying many samples IbaHD should return in each response for raw Channel data requests. Values less than or equal to `0` or `null` mean using the IbaHD default. Note: care should be taken when increasing this value, see the section "Memory management" in IbaHD’s API manual for warnings about memory exhaustion.
`DownsampledSignals`		DownsampledSignals	Configuration for the creation of downsampled signals

ServerDefinition Configuration

Property Name	Default Value	Data Type	Description
`Host`	empty	String	The IbaHD Server’s host address.
`Port`	`9005`	Integer	The IbaHD Server’s port.
`TlsCertificatePemFile`	empty	String	he filesystem path to the `.pem` file containing the IbaHD Server's TLS certificate. This certificate is generated in the IbaHD Server itself and must be valid for the `Host` configured above (i.e., firewalls must be accounted for).
`ApiKey`	empty	String	The API key configured in the IbaHD Server or a SECRETS_FILE containing it. Can be null if an API key is not configured in the IbaHD Server (i.e., user management is disabled).

DownsampledSignals Configuration

Property Name	Default Value	Data Type	Description
`CreateDownsampledSignals`	true	Boolean	Whether an additional Downsampled Signal should be created for each analog Channel. See the section "Downsampled Signals" above for details.
`SignalNamePrefix`	empty	String	The beginning of the name of Downsampled Signals, to be displayed in Seeq's UI.
`SampleCount`	100000	Integer	The maximum number of Samples that should be requested from Downsampled Signals for any given interval, no matter how large.
`DownsamplingMethod`	AVERAGE	String	One of `"AVERAGE"`, `"MINIMUM"` or `"MAXIMUM"`, specifying how IbaHD should calculate the representative Samples when downsampling. Note that the downsampling algorithm is defined and performed by the IbaHD Server itself.
